Residential Elevators – Home Elevator By PVE®
HOME ELEVATORS – PVE52
Three-Passenger Wheelchair Accessible Home Elevators

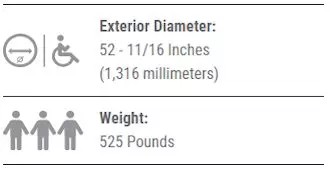

52-11/16″ Inch Exterior Diameter
525 lbs Capacity
The largest Residential Elevator model available, the PVE52 is the perfect choice for those in need of a Wheelchair Accessible Residential Elevator or wheelchair lift. With it’s quick installation, innovative design and minimal pre-construction requirements, this Three-Passenger Residential Elevator offers everything you need in a residential elevator.
Self-Supporting Home Elevators
This is the largest of the three vacuum elevators, capable of carrying three people or two people if one is in a wheelchair. Even our largest lift takes up less space in your home than other traditional elevators.
Like all other vacuum elevators, the PVE52 does not need a separate space for machinery or additional room above and below the lift for a pit.
Since the unit has a self-supporting structure, you will not have to add a frame to your home before installing it. This means you can fit this lift anywhere in your home!
ECO-Friendly Residential Elevator
Don’t forget that this vacuum elevator model won’t be costly in your electric bills.
As environmentally-friendly home elevators, the only electrical required to power it is 220V, 35 Amp, single phase service.
This wheelchair-accessible residential elevator maintains all of the safety and technology features that the other PVE models have as well.
Should a power outage occur, the vacuum lift safely descends to the lowest level and the mechanical door lock enables the passenger to exit, preventing passengers from getting stuck.
The cabin is equipped with an LED light as well as a cabin fan that circulates the ambient air throughout the elevator car.

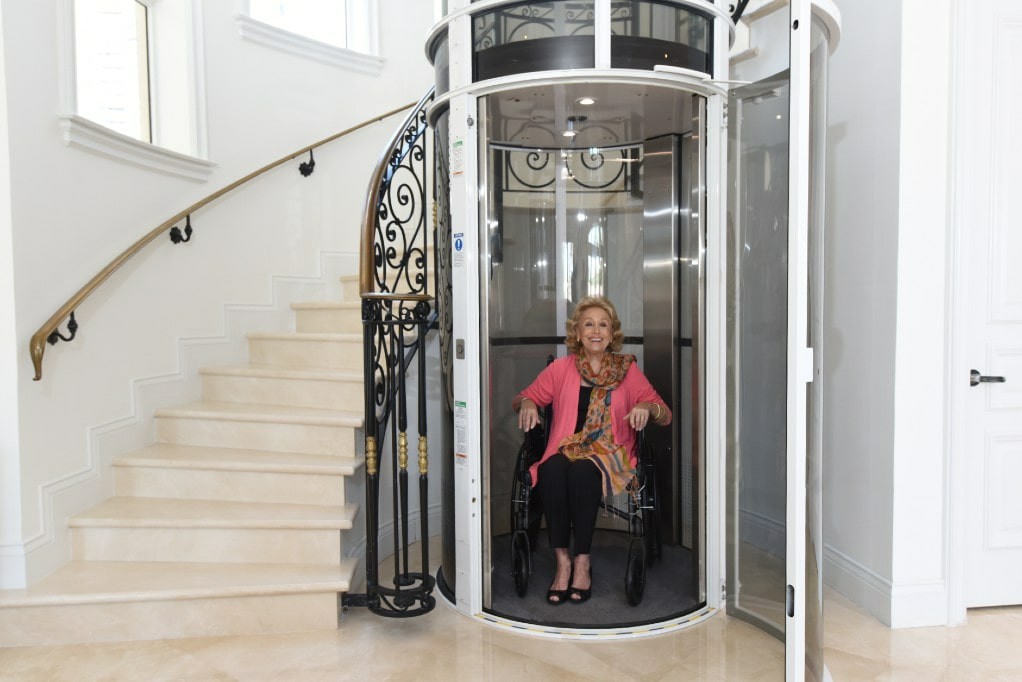

Wheelchair Accessible Home Elevators
The PVE52 has an external cylinder diameter of 52 11/16 inches. Inside the unit measures a roomy 43 1/2 inches in diameter.
This provides enough space for a person in a standard sized wheelchair with an attendant or for up to three adults to stand in comfort.
As a fully certified residential elevator, please note that the PVE52 home elevator is not ADA compliant and is not permitted for commercial applications. Due to the space-saving design of this elevator, not all wheelchairs may fit inside the cabin.
It is recommended to contact a PVE Authorized Distributor to ride and test a PVE52 locally to confirm your wheelchair sizes feasibility.
The cabin height is 6′ 7″, which is tall enough for provide headroom for most people. With same side or opposite side door offerings, the largest of the residential vacuum elevators can be configured to accommodate almost any elevator installation.

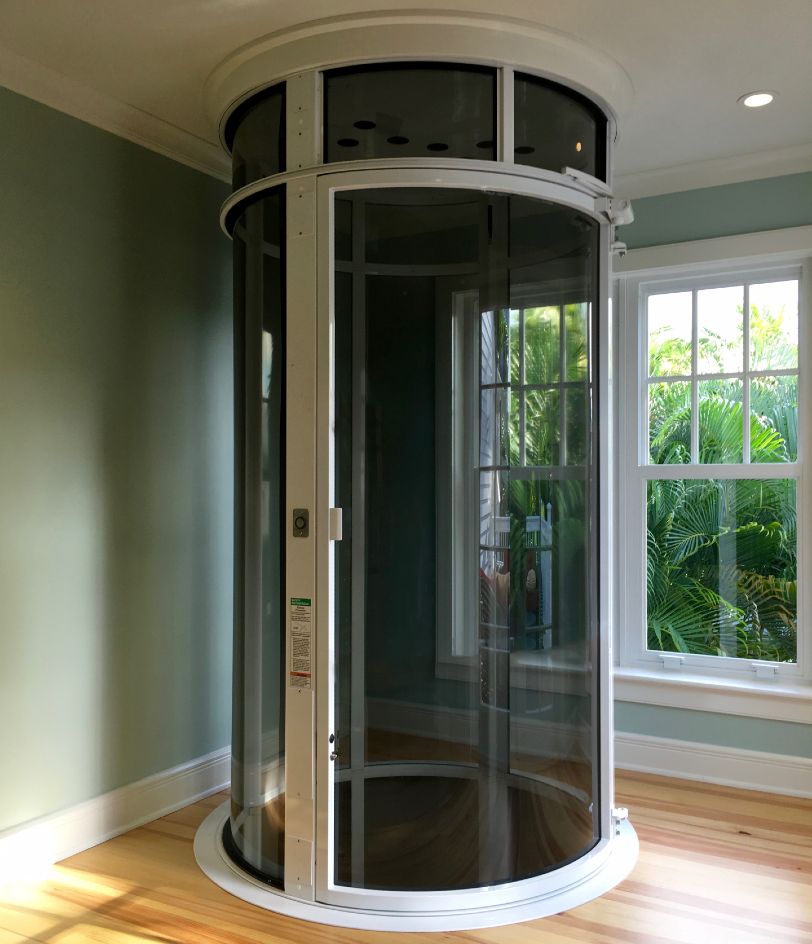

Panoramic Visibility
There are many options for wheelchair-accessible elevators or wheelchair lifts, but only the PVE52 gives you the space you need, the safety features you require, and a design that compliments your home’s decor.
This innovative residential elevator can be set up to have between two to five stops, which means it can be used in homes up to five stories or a total of 50 feet.
When you or a loved one needs help getting around in your home, installing a residential wheelchair lift is a good choice. Never has accessibility been so affordable, so attractive, or so simple!
Three Passenger, Wheelchair Accessible
Residential Elevator
Standard Features
Home Elevators – PVE52
- No pit, hoist way, or machine room required
- Self supporting structure
- 50 ft (15m) Total Rise Max
- 30 ft/M travelling speed
- Two to Five Stops
- External cylinder diameter: 52 11/16 inches (1,316mm)
- Internal cabin diameter: 43 1/2 inches (1118mm)
- Internal cabin height: 6’7” (79 inches/ 2007mm)
- Entrance way opening: 32 inches (813mm)
- Through Floor or Balcony Mount Landings
- Power Supply: 35 AMP 220VAC
- Fully Certified Residential Elevator – Not ADA Compliant
- In-line and 180° door openings
- Aluminum and polycarbonate cylinder structure
- Automatic interior LED lighting and fan
- Mechanical emergency safety brake system
- One year limited manufacturer warranty
- ASME A17.7 Certified
OPTIONS
- Split-Unit Feature
COLORS
- Color Chart
- Standard Black
- Light Gray
- White
- Dark Gray
- Taupe
- Anodized Silver
UPGRADES & FEATURES
- Solar Panel Package
- Smart Home Integration
- Automatic Door Openers
- Homing Feature
- Remote Control Option
CUSTOMIZATIONS
DOOR OPENING OPTIONS
- Door Configurations
- PVE52 Door Dimensions
- Door Swing
DRAWINGS & SPECS
- 2 Stop
- 3 Stop
- 4 Stop
- 5 Stop
- PVE52 Installation Drawings
- Technical Specs
- Installation Requirements
- Electrical Specifications
