Your Smart Lift Solution
ATECO

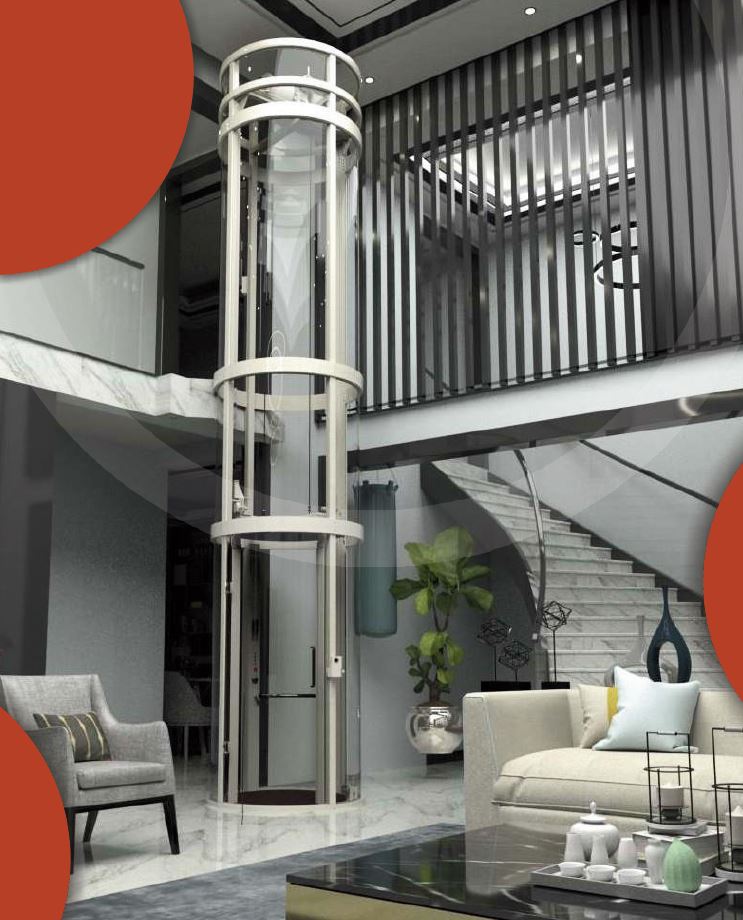

Circular Lift
Add value to your property and lift your lifestyle with a panoramic, self-supported circular home lift designed for modern living.
About Home Lift
A smart choice for homes, villas, stores, and elegant spaces.
ATECO Circular Home Lift is designed to make daily movement easier, safer, and more comfortable. It can help create access between floors, move furniture and heavy objects smoothly, support family members, and add market value to your property.
It is not only a luxury option. It is a smart long-term solution for modern lifestyle needs.
Add value to your property, lift your lifestyle with ATECO Circular.
What Makes Us Unique?
Flexible, panoramic, and easy to install
ATECO Circular is built around smart installation, minimal maintenance, panoramic visibility, and low-noise movement.
Smart Civil Work
No supporting wall, pit, hydraulics, or vacuum systems are required. It can be installed inside, outside, in lobbies, or where it enhances the building design.
Minimal Maintenance
An electrical self-supporting elevator with no oil, vacuum systems, or counterweights, helping reduce additional costs and maintenance time.
Plug & Play
The elevator comes as a semi-assembled unit. Install it, plug it into domestic electricity, and start moving up and down.
Self-Supported Structure
A stand-alone elevator that does not require supporting beams, columns, or walls. All you need is the space.
Panoramic View
The glassy sightseeing capsule allows passengers to enjoy eye contact with the surrounding area while the lift is moving.
Green & Quiet
Eco-friendly materials, lower energy consumption, and a smooth moving system with minimum noise.
Trust Technology
Certified safety at the heart of every piece.
ATECO Circular Lift has been designed with safety and performance standards in mind, including compliance with Machinery Directive 2006/42/EC.
Photosell Sensors
Light sensors force the lift to stop immediately when passengers or obstacles are detected.
Mechanical Guide Rails Brakes
Automatic braking locks in place if the elevator moves faster than the allowed amount.
Overload Sensor
When overloaded, the elevator will not move and gives a sign on the cabin operating panel.
Limit & Emergency Stop
Switches help stop the car at final destinations or in emergency cases.
Machine Brake Hand
Allows a technician to free the car and descend it to the closest lower floor in emergency cases.
Magnetic Lock Switch
Ensures the elevator door opens only when the car is available and the lift is not in use.
Overspeed Governor
Designed to stop the lift if it runs beyond the prescribed speed.
Rescuing UPS System
Battery backup power turns on automatically when regular power fails or voltage drops.
Customization
Adaptable for today and flexible for tomorrow.
Adaptability
The product’s simple technology helps make full use of your property’s space and can be installed without additional reinforcement or structural changes.
Flexibility
A G+1 lift can be converted later into G+2 or G+3. The lift can also be dismantled and relocated to a new place or property.
Return to Home
A timed electronic system allows you to choose the floor where the lift should land when not in use.
Color Options
Choose the look and feel that suits your décor.
Standard ESP painting options and stainless steel finishes are available for indoor and outdoor use.
Ral 9001 Cream
Ral 1004 Golden Yellow
Ral 5002 Ultramarine Blue
Ral 9004 Signal Black
Ral 9003 Signal White
Ral 8012 Red Brown
Ral 9007 Grey Aluminum
Ral 8003 Clay Brown
General Specifications
- Single entrance
- Opposite entrance
- Three-way entrance
- Multiple door access available
The door access can be customized according to the building situation, allowing entrances and exits from different sides on each floor.
| Maximum Travel | 14 MT |
|---|---|
| Maximum Levels | 5 Stops / 17.1 MT |
| Pit Depth | 120 mm - No pit with optional short ramp |
| Installation Place | Inside - Outside |
| Drive Train | Winding Drum Machine with Encoder, made in Italy |
| Machine Control | Preprogrammed variable frequency drive |
| Rope | 8 mm standard TOP quality, German quality available on request |
| Transmission | Ultra-low vibration, 3-stage, right-angle, helical-bevel drive |
| Noise Level | 54db ventilator OFF / 56db ventilator ON |
| Cabin Cladding | Clear solid polycarbonate, 250 times stronger than glass |
| Cabin Ceiling | LED spot light / spot light |
| Cabin Operating Panel | Intercom, alarm, emergency stop button |
| Cabin Flooring | PVC / Wood |
| Shaft Construction | Profil |
| Structure Cladding Glass | Solid polycarbonate 4 mm, made in Germany |
| Landing Door Height | 2100 mm |
| Door Type | Swing manual door and swing semi-automatic choice |
| Door Interlocks | Italian brand, made in Italy |
Multiple Door Access
Flexible entry and exit points.
The flexible design allows ATECO to install entrances or exits from different sides on each floor. This is especially useful in buildings originally built without elevators.
A smart solution for new homes, vintage homes, commercial spaces, hotels, and stores.
We Rise Together
Contact ATECO Corporation today to discuss your project, select your circular lift configuration, and request a quotation.
